45°英制内螺纹60°外锥面密封

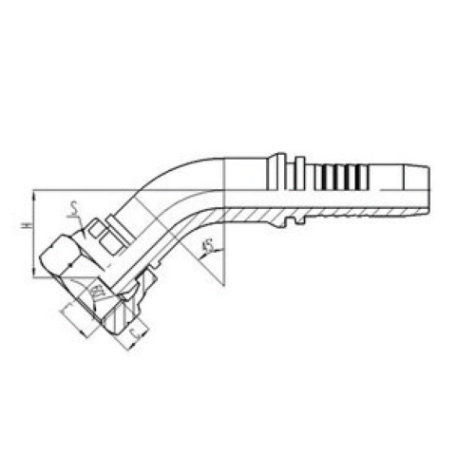

45°英制内螺纹60°外锥面密封的详细介绍：
|
代 号 |
螺 纹 E |
胶管 HOSE BORE |
尺 寸 DIMENSIONS |
|||
|
PART NO. |
THREAD E |
公称内径 DN |
标号 DASH |
C |
S |
H |
|
22641-04-04 |
G1/4"X19 |
6 |
04 |
5.5 |
19 |
20.2 |
|
22641-06-06 |
G3/8"X19 |
10 |
06 |
6.3 |
22 |
22.6 |
|
22641-08-08 |
G1/2"X14 |
12 |
08 |
7.5 |
27 |
26.1 |
|
22641-10-10 |
G5/8"X14 |
16 |
10 |
9.5 |
30 |
27.8 |
|
22641-12-12 |
G3/4"X14 |
20 |
12 |
10.9 |
32 |
31.8 |
|
22641-16-16 |
G1"X11 |
25 |
16 |
11.7 |
41 |
34.2 |
|
22641-20-20 |
G1.1/4"X11 |
32 |
20 |
11 |
50 |
40 |
|
22641-24-24 |
G1.1/2"X11 |
38 |
24 |
13 |
55 |
44.8 |
|
22641-32-32 |
G2"X11 |
51 |
32 |
16 |
70 |
54.1 |
注： 1、表中代号用于编织软管； 2、如需用于缠绕软管代号改为 2264 2-xx-xx；
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 2264 2-xx-xx；
